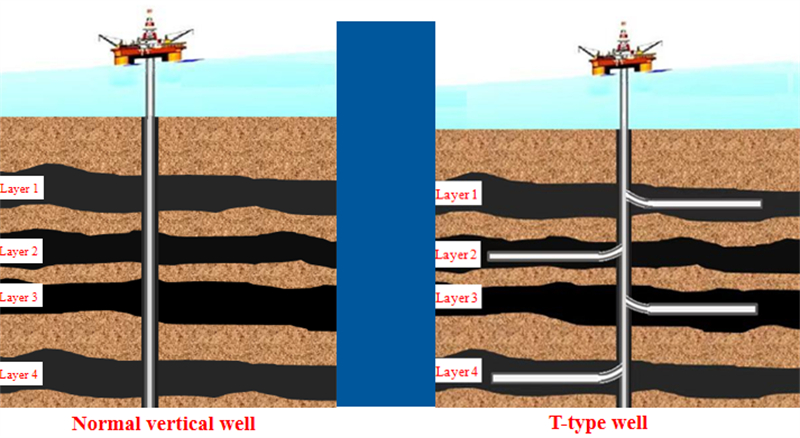

T-type drilling Technical index
Horizontal hole size: ≥¢114mm(139.7mm CSG); ¢152mm(177.8mm CSG)

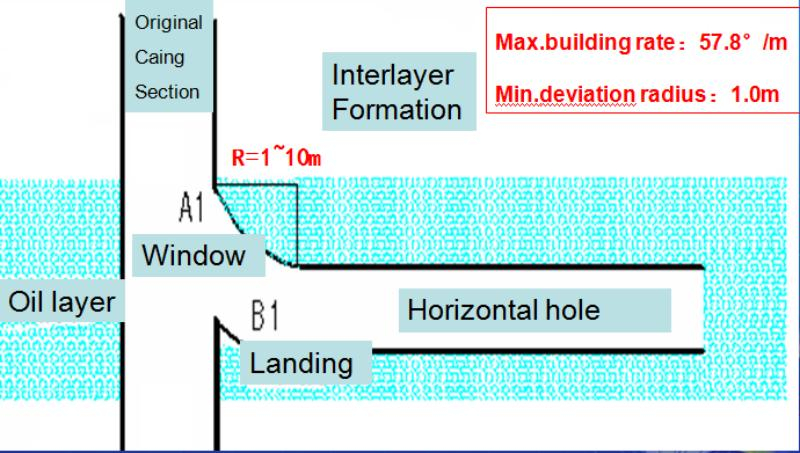

Radius of curvature:1m~10m(adjustable)
T-type hole length: ≥100m
The length of window: 24㎝(ellipse)
Azimuth error : ±3°
Trajectory error: ±1%
Hole measured: Multi point inclinometer
Completion: Multiple completion methods
